Wellwood Restoration Monitoring

The M/V Wellwood, a 122-meter Cypriot-registered freighter, ran aground on August 4, 1984, on Molasses Reef off Key Largo, Florida. The ship impacted the reef’s upper fore reef and remained aground for 12 days. The grounding destroyed 1,285 square meters of living corals and injured 644 square meters of coral reef framework. In an effort to restore habitat structure and stability to the grounding site, restoration began in May 2002 (to find out more, visit NOAA's Wellwood Webpage). REEF was contracted by the National Marine Sanctuary Program to document recruitment of fishes onto the site as well as the subsequent changes, if any, to surrounding reefs sites.

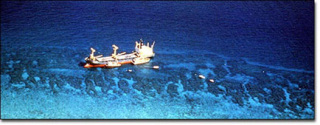

The M/V Wellwood aground on Molasses Reef, Key Largo, in 1984.  Photo courtesy FKNMS.The M/V Wellwood aground on Molasses Reef, Key Largo, in 1984. Photo courtesy FKNMS.

REEF’s Advanced Assessment Team and Staff are conducting the monitoring. Both Roving Diver surveys and belt transect surveys are being conducted at the Wellwood restoration site and 2 adjacent natural reef sites. The 5-year project will provide temporal documentation of fish composition changes over time. The value of the information collected during this project will specifically aid in the assessment of restoration sites as effective replacements for natural habitat.

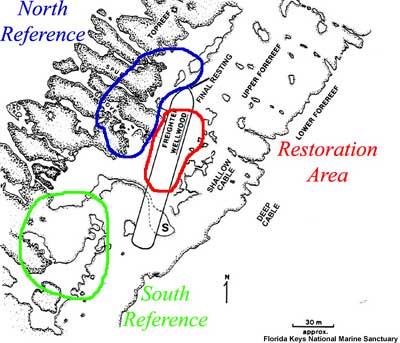

Members of REEF's Advanced Assessment Team before heading out for one of the winter surveys.Members of REEF's Advanced Assessment Team before heading out for one of the winter surveys.Location of REEF's monitoring sites.Location of REEF's monitoring sites.























Results

YEAR 1

The team visited the three sites 7 times during Year 1, once in May 2002 prior to the installation of the restoration modules, monthly for 3 months after the restoration was complete (August, September, October 2002), and then quarterly (January, April, and July 2003). A total of 267 RDT surveys and 246 belt transects were conducted.


YEAR 5

Between May 2002 and August 2007, the restoration site and the two reference sites were surveyed a total of 14 times.  A total of 585 RDT surveys and 559 belt transects were conducted by the REEF survey team.  During the monitoring period, a total of 165 fish species were recorded at the restoration site, 189 species at the North Reference site and 207 species at the South Reference site.

Click the links below to view a complete fish species list for:

Wellwood Grounding Restoration Site

North Reference Site

South Reference Site

Compare the species list for all three sites

Wellwood Restoration Project Fish Monitoring Five Year Final Report (PDF)

Key Findings:

- Average species richness per monitoring event was 84 at the Restoration Site, 116 at the North Reference and 124 at the South Reference.

- The top 25 species from each of the reference sites were also recorded at the Restoration Site; however there were several species of grunt and snapper that were in high abundance at the reference sites that were rare at the Restoration site.

- Overall density and biomass recorded during visual transects were lower at the Restoration Site than at either reference site due to the very low numbers of snapper and grunt present; density, biomass, and size of herbivores (parrotfish and surgeonfish) were similar at restoration and reference sites.

- Of the 43 species documented in transect surveys at the Restoration Site, relatively few species were present in significant numbers.  Species documented with a total density of at least 0.9 individuals per m2 include:  striped parrotfish, redband parrotfish, stoplight parrotfish, yellowtail snapper, ocean surgeonfish, doctorfish, blue tang, and yellowtail damselfish.

Conclusions:

- After an initial colonization by fishes, the fish assemblage diversity, density and biomass present at the Restoration site have leveled off and remain lower than that found at nearby reference areas.

- Parrotfish and surgeonfish appear to be responding the quickest to the restoration efforts, with densities and biomass values similar to that of the reference sites.

- The relatively short duration of this study makes it difficult for results to be teased out from natural population variability.  Similarly, definitive conclusions cannot be achieved from these data due to the limited amount of time that has passed since restoration and the well-known decadal processes that are required for coral reef development.  However, these data will serve as a critical baseline for assessing future changes and the effect of any future restoration efforts at the site.

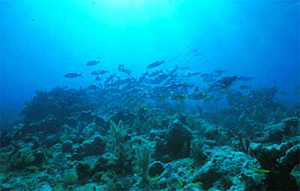

This is the South Reference site, an area of with spur and groove and some hard bottom areas.This is the South Reference site, an area of with spur and groove and some hard bottom areas.One of the restoration modules.  This photo was taken in October 2002.One of the restoration modules. This photo was taken in October 2002.
